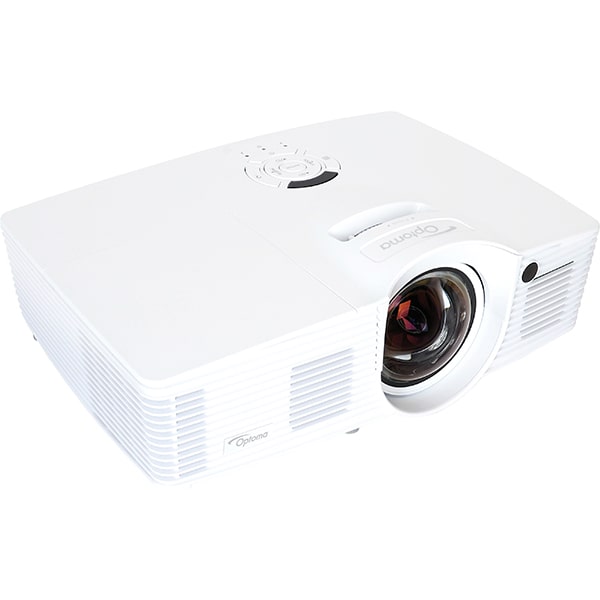

EH200ST 1080P 3000 Lumens Projector

The Optoma EH200ST brings all-digital short throw high definition projection to conference rooms, training rooms, classrooms and houses of worship. Its sharp 0.5:1 short throw projection lens delivers large, bright, crystal clear 1080p resolution graphics, presentations and movies ranging in size from 40" to 300" diagonal.

Whether your application calls for wall mounted installation or desktop projection, the Optoma EH200ST will captivate your audience with its 3000 lumens bright image, vibrant, true-to-life colors and 20,000:1 contrast ratio.

Equipped with the level of connectivity you need for today’s digital world, the Optoma EH200ST offers two HDMI ports, MHL connectivity, VESA 3D sync port, Audio out, 12V output, powerful 10-Watt audio, whisper quiet operation and more. The EH200ST features Optoma’s latest Eco+ technology for ultra-long lamp life and low cost of operation.

Optoma EH200ST White 1080P 3000 Lumens Projector Front View

Optoma EH200ST 1080P 3000 Lumens Projector Rear View

Key Features

  • Projection Method: Ceiling
  • Projection Method: Front
  • Projection Method: Rear
  • 3D Type: 3D Ready
  • Throw Type: Short Throw
  • Maximum Diagonal Image Size: 25.27 ft
  • Number of Lamps: 1
  • Lamp Type: P-VIP
  • Lamp Power: 190 W
  • Normal Mode Lamp Life: 5000 Hour
  • Economy Mode Lamp Life: 6000 Hour
  • Standard Mode Brightness: 3000 lm
  • Native Resolution: 1920 x 1080
  • Graphic Mode: Full HD
  • Maximum Resolution: 1920 x 1200
  • Native Aspect Ratio: 16:9
  • Contrast Ratio: 20,000:1
  • Video Signal Standard: HDTV
  • Output Scan Format: 1080p

Tech Specs

  • Display Technology Single 0.65" DC3 DMD DLP® Technology by Texas Instruments™
  • Native Resolution HD 1080p (1920 x 1080)
  • Maximum Resolution WUXGA (1920 x 1200)
  • Brightness 3000 lumens
  • Contrast Ratio 20,000:1
  • Displayable Colors 1.07 Billion
  • Lamp Life and Type* 6500/6000/5000 (Bright/Eco/DB), 190W
  • Projection Method Front, rear, ceiling mount, table top
  • Keystone Correction ±40° Vertical
  • Uniformity >80%
  • Offset 116%
  • Aspect Ratio 16:9 Native, 4:3 compatible
  • Throw Ratio 0.5 (distance/width)
  • Projection Distance 1.64'–11' (0.5–3.35 m)
  • Image Size 45.3"–303.2" (1.06–7.74 m)
  • Projection Lens F=2.8, f=7.42 mm and focus
  • Digital Zoom 0.8 ~ 2.0
  • Audio 10-Watt speaker
  • Noise Level 26dB (Eco)
  • Remote Control Backlit IR remote control
  • Operating Temperature 41–104°F (5–40°C), 85% max humidity
  • Power Supply AC Input 100–240V, 50–60Hz, auto-switching
  • Power Consumption Max 262W (Normal), Min 193W (Eco), <0.5W (standby-ECO)
  • Warranty 1-Year Limited Parts and Labor, 90-Days on Lamp

Optoma EH200ST 1080P 3000 Lumens Projector Lifestyle

Compatibility Specs

  • Computer Compatibility WUXGA, UXGA, SXGA+, WXGA+, WXGA, SXGA, XGA, SVGA, VGA
  • Video Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
  • 3D Compatibility† Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e 60 or 72 frames per eye). 3D glasses are needed and are sold separately. Refer to user manual for details.
  • Vertical Scan Rate 24–85Hz, 120Hz
  • Horizontal Scan Rate 15.375–91.146KHz
  • Latency <14 msec
  • User Controls Complete on-screen menu, adjustments in 27 languages
  • I/O Connection Ports Two HDMI v1.4a, 3D VESA, audio-out, USB mini-B, 12V trigger
  • Loop Through (Audio) Audio: VAO audio out, HDMI VAO audio out supported (VAO in normal mode, fixed in Standby)

Physical Specifications

  • Security Kensington® lock, security bar and keypad lock
  • Weight 6 lb (2.7 kg)
  • Dimensions (W x H x D) 12.4" x 4.0" x 8.8" (315 x 102 x 224 mm)

Whats Included

  • EH200ST DLP Projector
  • Carrying Case
  • Lens Cap
  • HDMI Cable
  • AC Power Cord
  • Remote Control
  • Batteries For Remote
  • Multilingual CD-Rom
  • User's Manual
  • Quick Start Card
  • Warranty Card


Optoma EH200ST 1080P 3000 Lumens Projector User Manual Optoma EH200ST 1080P 3000 Lumens Projector User Manual
Optoma EH200ST 1080P 3000 Lumens Projector Data Sheet Optoma EH200ST 1080P 3000 Lumens Projector Data Sheet
